Product Description:








Operation Panel

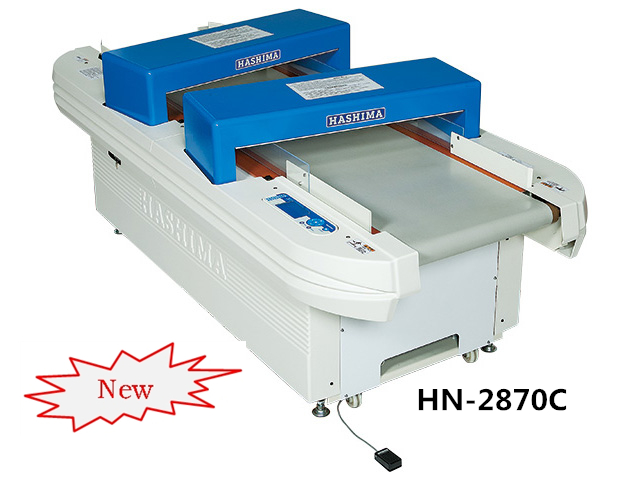

MODEL  HN-2870C
DETECTION METHOD  Magnetic induction
DETECTION ABILITY  Φ0.8mm steel to small scissors
DETECTION ADJUSTMENT 100 Step (level 0.0-10.0)
DETECTION WIDTH  600mm
DETECTION HEIGHT  100mm (Standard) Oprion : 140mm and 180mm
ALARM METHOD  Buzzer, Lamp
BELT SPEED  (approx.) 40m/min
POWER SUPPLY  Single phase
TATED OUTPUT  140W
DIMENSIONS  2,450(L)×1,080(W)×930(H)mm
WEIGHT  (approx.) 360kg
FEATURES ●Two head sensor
 The two sensor head are set at different angle to minimize a detection difference made by direction of broken.
●Blue back LCD panel
 Improved visibility and operatively.
●New sensitivity level monitorr
 New monitor provide more detail detection result.
●Detection position indicator
 Machine tells us location of the broken needle, so it can be found easier.
●100step sensitevity setting
 Set suitable sensitevity with 100 steps adjustment.
●φ0.8mm
 This machine has adopted new design detecting sensor so that φ0.8mm is available at detecting 100mm height. It promises detecting assuracy.
●40m/min (50/60Hz)
 This belt speed that connect to detecting speed is no.1 on this class.
●Return device
 This machine has return device that the products return to a operator after making alarm when the machine detects foreign object in a products.
●Products Counter
 Counter function is equipped as standard.
●Foot switch
 You can start the operation by pushing foot switch such as when holding products.
●Printer (option)
 Optional printer is convenient to make a report.
